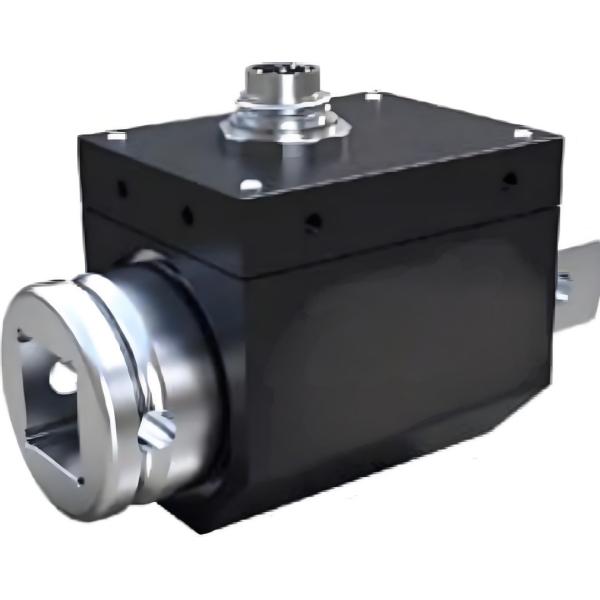

SLZN-667 High Quality High Accuracy and Cost Effective Dynamic Torque Tester
Product Introduction
The SLZN-667 strain type torque sensor has an output signal of mA/V and is particularly suitable for measuring the tightening torque of bolts.
This series of sensors uses high-quality slip rings to provide power supply for the bridge circuit and transmit signals. They are convenient to use and durable, and are mainly used as online torque sensors. The sensor, in combination with the corresponding measurement and evaluation system, constitutes a torque/rotation angle measurement device that is low-cost yet highly accurate.
The SLZN-667 torque sensor is particularly suitable for bolt tightening applications. There are various interface types in the series, such as square or hexagonal shaft ports, which can be directly installed on the driving equipment.
Product Features
◆The SLZN-667 strain type torque sensor has an output signal of mA/V and is particularly suitable for measuring the torque of bolt tightening.
◆ Full-bridge strain system
◆ Automatic bridge circuit calibration
◆ The short-term rotational speed can reach 5000RPM
◆ It can measure measure the torque for both forward and reverse rotation
◆ The design is sturdy and reliable
◆ Small and portable
◆ Long service life
◆ Resistant to shock and vibration
◆ Corner measurement is optional
Structure Diagram
Technical Parameters
| Items | Parameters |
| Measurement Range | ±0.5N∙m... 300k Nm |
| Overload capacity | 120% |
| Output signal | 5-15KHZ; 0-10V; 4-20mA |
| Accuracy level | 0.5%; 0.25%; 0.1% |
| Power supply | 24VDC |
| Working speed | 0-5000 RPM |
| Response frequency | 100 μs |
| Insulation resistance | > 200MΩ |
| Zero drift | < 0.5% |
| Repeatability | < 0.1% |
| Linear | < 0.1% |
| Lag | < 0.1% |
| Ambient temperature | -40 - 60 ℃ |
| Relative humidity | < 90%RH |
| Operating temperature range | -10 - 70 ℃ |
| Storage temperature range | -25 - 80 ℃ |
| Sensor amplitude | 10V |
| Sensor power consumption | ≈4W |
| Sensor current consumption | 100mA |
| Strain gauge dynamic strain wave response time | 3.2 X10-6 s |
| Sensor housing | Strong anodized aluminium |
Application Fields
- Industrial field: Torque monitoring of CNC machine tool spindles, screw pressure feedback of injection molding machines
- Transportation field: New energy vehicle motor/transmission test bench, efficiency analysis of ship propulsion shafting
- Research fields: Material torsional strength experiments, development of robot joint force control algorithms
